New xFusion 2288H V6 Hyperconverged Infrastructure System 20*2.5 Inch Drive Xeon 2*4310 2*64GB 9540-8i 1500W 2U Rack Server

Product Description

Product Display

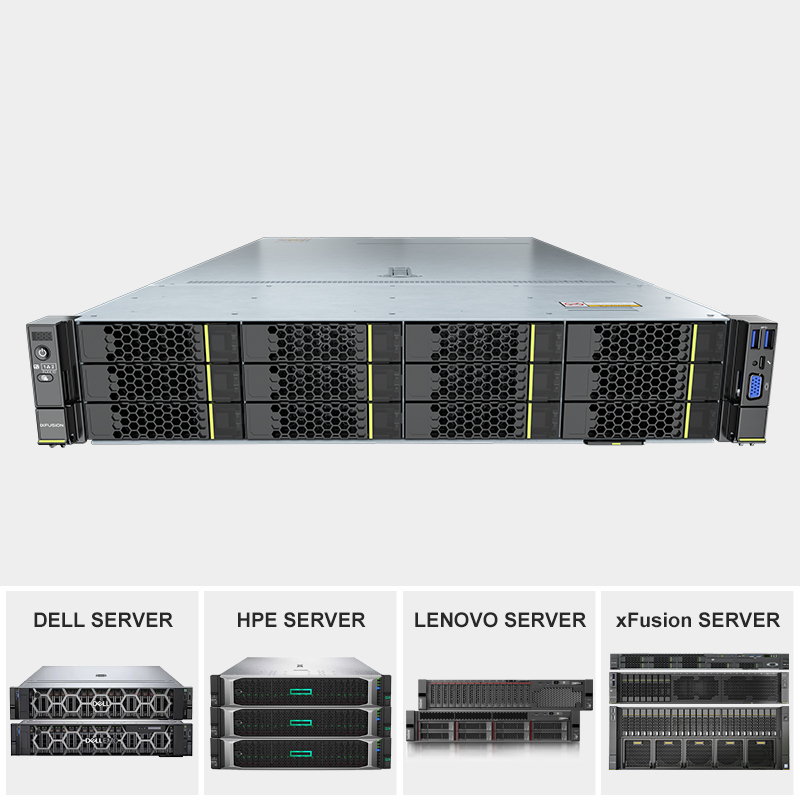

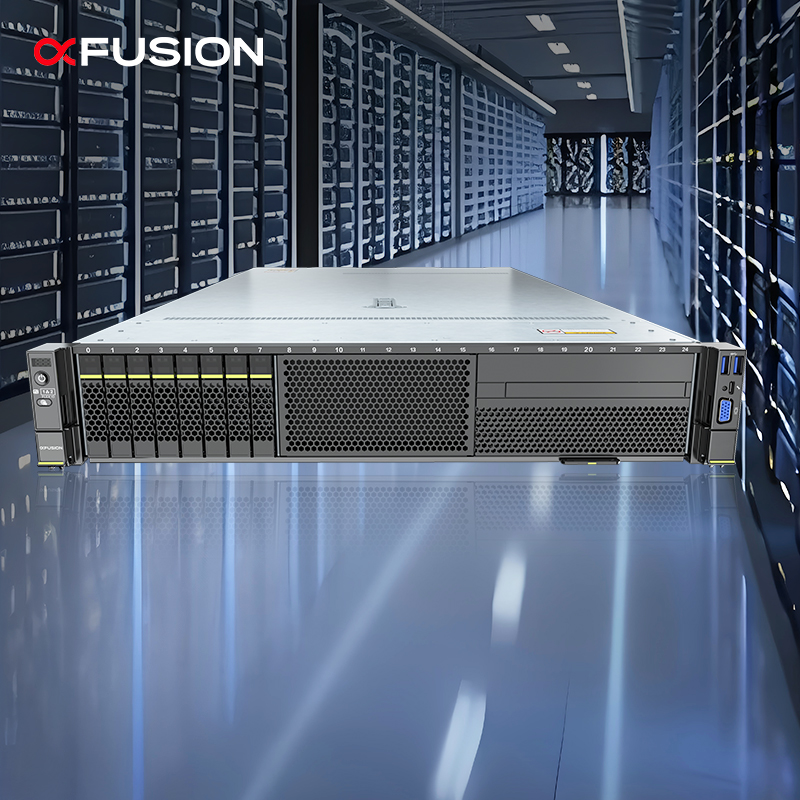

FusionServer 2288H V6 2U rack server
The FusionServer 2288H V6 is a 2U 2-socket rack server with flexible configurations, which can be widely used for cloud computing, virtualization, database, and big data workloads. The 2288H V6 can be configured with 2-socket Intel® Xeon® Scalable processors, 32 DDR4 RAM, 14 PCIe expansion slots, and supports large local storage resources. It integrates patented technologies such as DEMT, intelligent power consumption management, FDM intelligent fault management, and optional FusionDirector full lifecycle management software, which can effectively reduce operations cost, improve return on investment.
Product Description

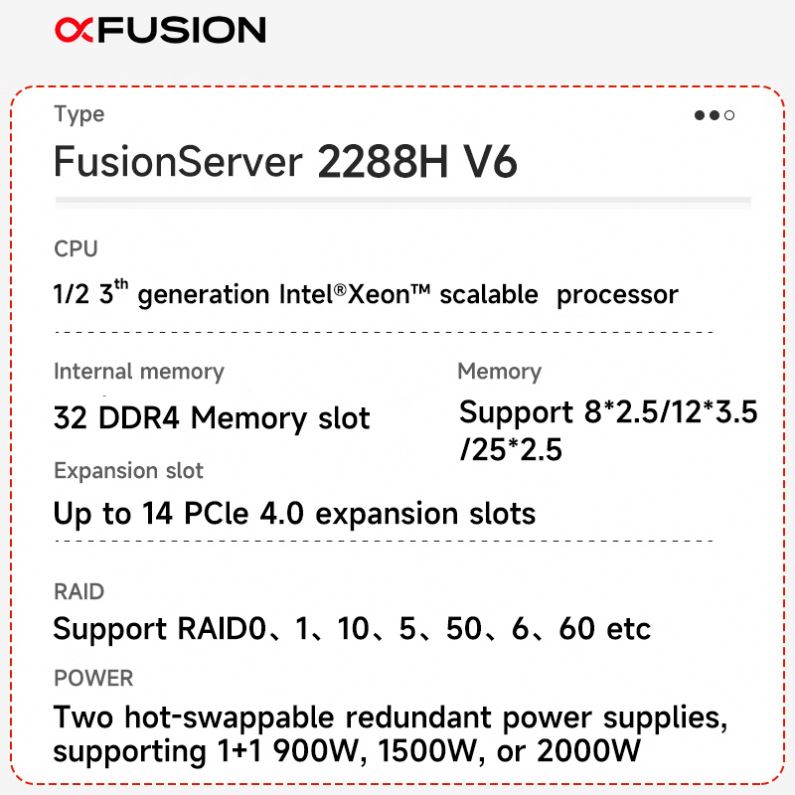

Product Parameters
Server Model FusionServer 2288H V6
Form Factor 2U rack server
Processors One or two 3rd Gen Intel® Xeon® Scalable Ice Lake processors (8300/6300/5300/4300 series), TDP up to 270 W
Local Storage Supports various drive configurations and hot swappable:
• 8-31 x 2.5-inch SAS/SATA/SSD drives
• 12-20 x 3.5-inch SAS/SATA drives
• 4/8/16/24 NVMe SSDs
• 45 x 2.5-inch drives or 34 full-NVMe SSDs
Supports flash storage: Dual M.2 SSDs

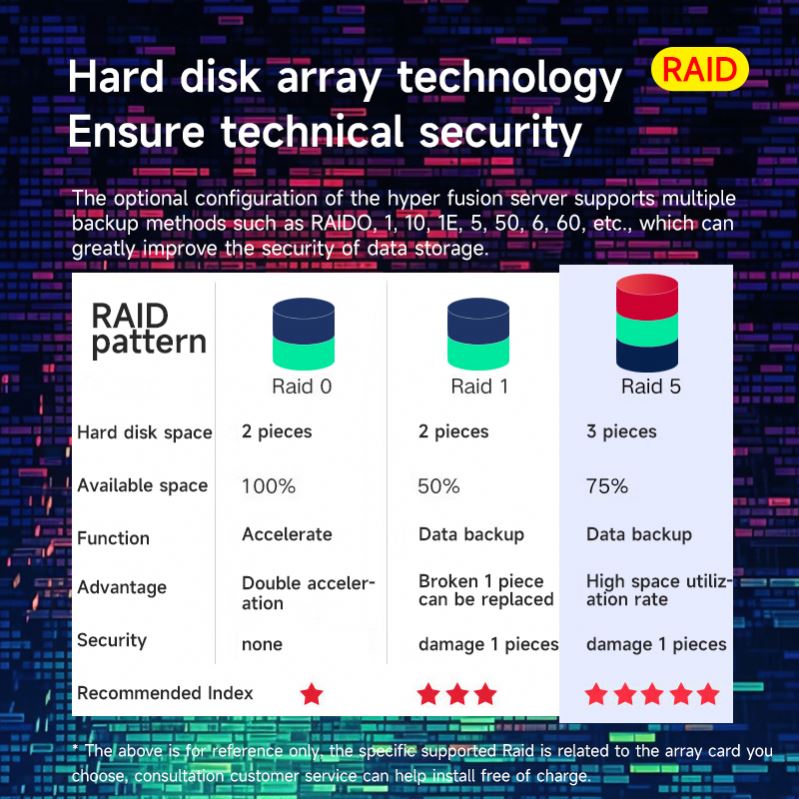

RAID support Supports RAID 0, 1, 10, 1E, 5, 50, 6, or 60, optional supercapacitor for cache data power failure protection, RAID level migration, drive roaming, self-diagnosis, and remote web-based configuration.
Network Provides expansion capability of multiple types of networks. Provides OCP 3.0 NICs. The two FlexIO card slots support two OCP 3.0 network adapter respectively, which can be configured as required. Hot swappable function supported.
PCIe Expansion Provides a maximum of fourteen PCIe 4.0 slots, including one PCIe slot dedicated for RAID card, two FlexIO card slots dedicated for OCP 3.0, and eleven PCIe 4.0 slots for standard PCIe cards.
Chip Set Intel C621A
Management The iBMC chip integrates one dedicated GE management port to provide comprehensive management functions such as fault diagnosis, automated O&M, and hardware security hardening.
• Supports Redfish, SNMP, and IPMI 2.0; remote UI based on HTML5/VNC KVM.
• (Optional) FusionDirector management software for advanced lifecycle management.
Security Features Power-on password, administrator password, TPM 2.0, security panel, secure boot, and cover opening detection.
Power Supply Two hot-swappable PSUs (1+1 redundancy). Options include: 900W/1500W/2000W/3000W AC Platinum/Titanium, 1500W HVDC, or 1200W DC PSUs.
Detailed Views

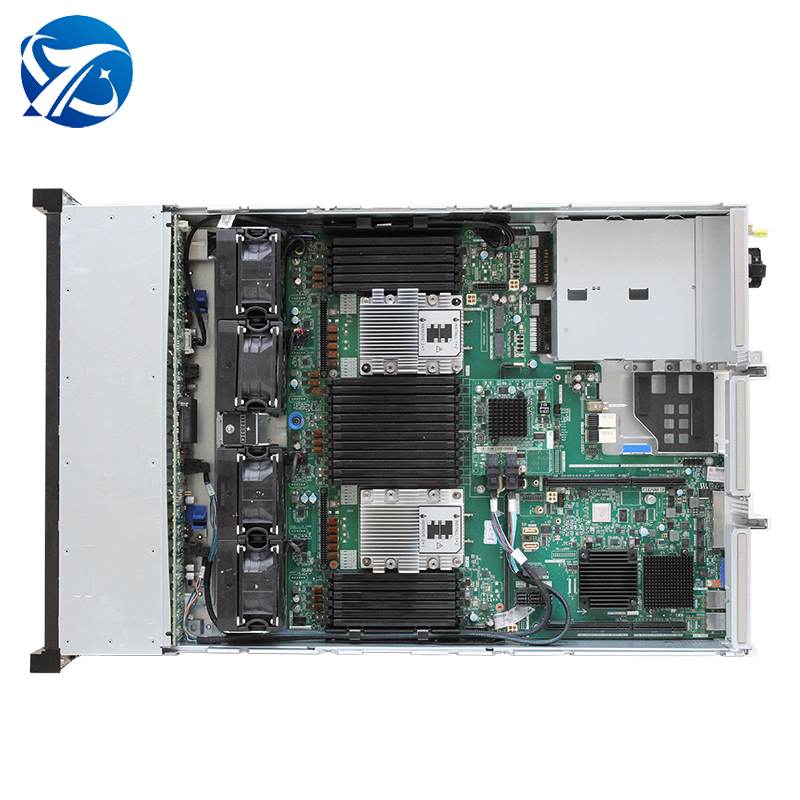

Detail 1 Detail 2
Professional Infrastructure Services
As a leading integrated IT solutions provider, we combine cutting edge in house manufacturing, dedicated R&D facilities, and a robust global distribution network to deliver comprehensive end to end infrastructure services. With a team of over 300 highly skilled professionals, including more than 150 certified engineers holding top tier certifications, we bring 15 years of proven expertise in designing, deploying, and maintaining mission-critical IT environments for enterprises worldwide. Our vertically integrated approach ensures seamless quality control from component sourcing to final implementation.
Authorized Partner: We provide computing servers, network storage, network switches, CPU, RAM, HARD DRIVES, and other accessories from world-class brands.
Professional Facilities
Logistics & Exhibition
Exhibition
Packing 1 Packing 2

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Frequently Asked Questions
Q1: How quickly can I receive a formal quotation?
We usually provide a detailed quote within 24 hours of receiving your inquiry. For urgent requirements, please reach out via phone or prioritized email channels.
Q2: What are the advantages of choosing your hardware solutions?
Quality and reputation are our core values. We provide a 3-year replacement warranty for whole machine products and maintain a complete supply chain to ensure rapid after-sales response.
Q3: Are the components used in the servers original?
Yes, all memory modules use original brand chips. Every component undergoes strict testing protocols before delivery to ensure stability and performance.
Q4: What payment methods do you support?
To ensure a secure transaction, we accept various payment methods including Credit Cards, Bank Transfers (T/T), and other standard international payment platforms.
Q5: Is there a Minimum Order Quantity (MOQ) for orders?
MOQ varies depending on the product type. We strive to be flexible and cater to both enterprise-level deployments and smaller specialized orders.
Q6: How do your prices compare to the local market?
While prices may seem similar to local options, our value lies in the internal component quality and long-term reliability. We believe that premium internal hardware is essential for sustainable business operations.
