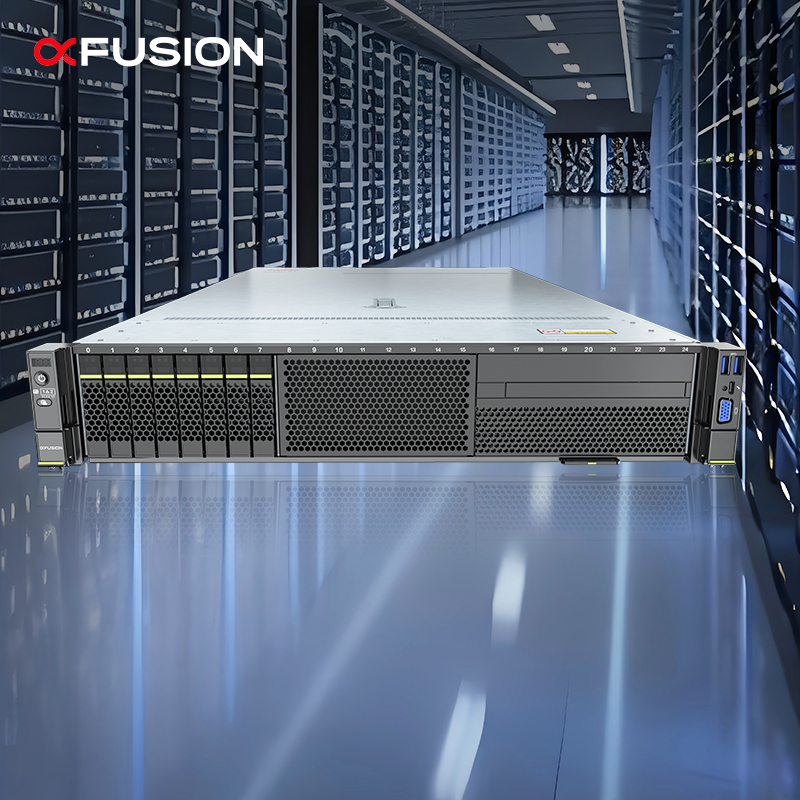

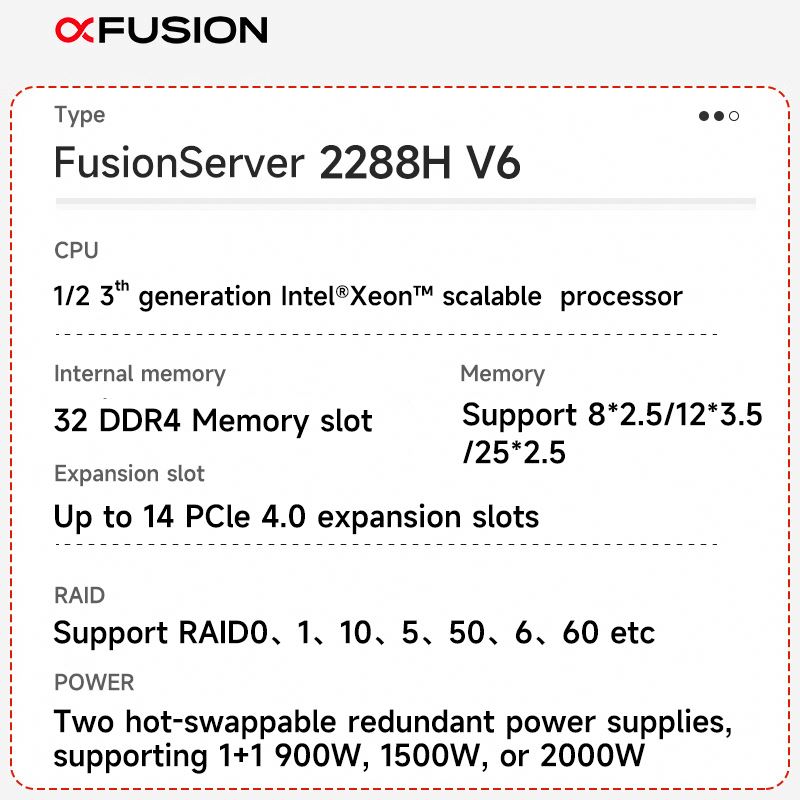

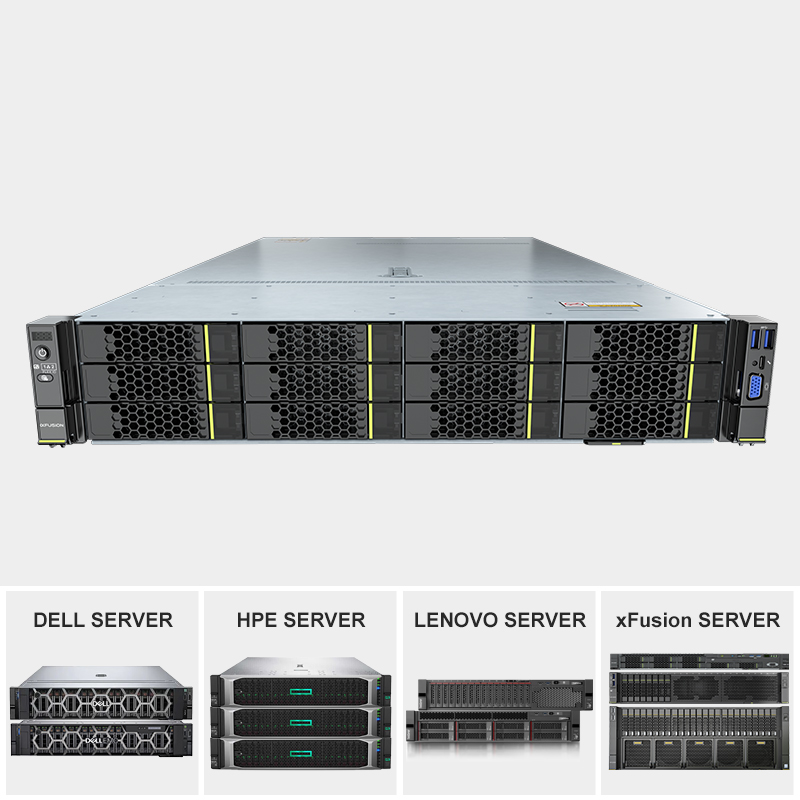

| Server Model | FusionServer 2288H V6 |
| Form Factor | 2U rack server |
| Processors | One or two 3rd Gen Intel® Xeon® Scalable Ice Lake processors (8300/6300/5300/4300 series), TDP up to 270 W |
| Local Storage | Supports various drive configurations: 8-31 x 2.5-inch SAS/SATA/SSD; 12-20 x 3.5-inch SAS/SATA; 4/8/16/24 NVMe SSDs; Dual M.2 SSDs |
| RAID support | Supports RAID 0, 1, 10, 1E, 5, 50, 6, or 60; optional supercapacitor for cache protection. |
| Network | Provides OCP 3.0 NICs; Two FlexIO card slots; Hot swappable function supported. |
| PCIe Expansion | Up to 14 PCIe 4.0 slots, including dedicated RAID card slot and FlexIO slots. |
| Chip Set | Intel C621A |
| Management | iBMC chip integrates GE management port; supports Redfish, SNMP, IPMI 2.0, HTML5/VNC KVM; Optional FusionDirector. |
| Operating Systems | Windows Server, SUSE Linux Enterprise, VMware ESXi, Red Hat, CentOS, Oracle, Ubuntu, Debian, etc. |
| Security Features | TPM 2.0, secure boot, power-on password, administrator password. |
| Operating Temp | 5°C to 45°C (41°F to 113°F) (ASHRAE Classes A1 to A4 compliant) |
| Dimensions | 86.1 mm x 447 mm x 790 mm |
| Power Supply Units | Hot-swappable PSUs (1+1 redundancy); 900W/1200W/1500W/2000W/3000W options. |
