New xFusion Fusionserver 2288H V6 Computer Servers 8*2.5 Inch Drive 2288H V6 2U 2-socket Rack Server

1 / 5

New xFusion Fusionserver 2288H V6 Computer Servers 8*2.5 Inch Drive 2288H V6 2U 2-socket Rack Server

Send Inquiry

Product Description

🚀 Product Display

FusionServer 2288H V6 2U rack server is a 2-socket rack server with flexible configurations, which can be widely used for cloud computing, virtualization, database, and big data workloads. The 2288H V6 can be configured with 2-socket Intel® Xeon® Scalable processors, 32 DDR4 RAM, 14 PCIe expansion slots, and supports large local storage resources.

It integrates patented technologies such as DEMT, intelligent power consumption management, FDM intelligent fault management, and optional FusionDirector full lifecycle management software, which can effectively reduce operations cost and improve return on investment.

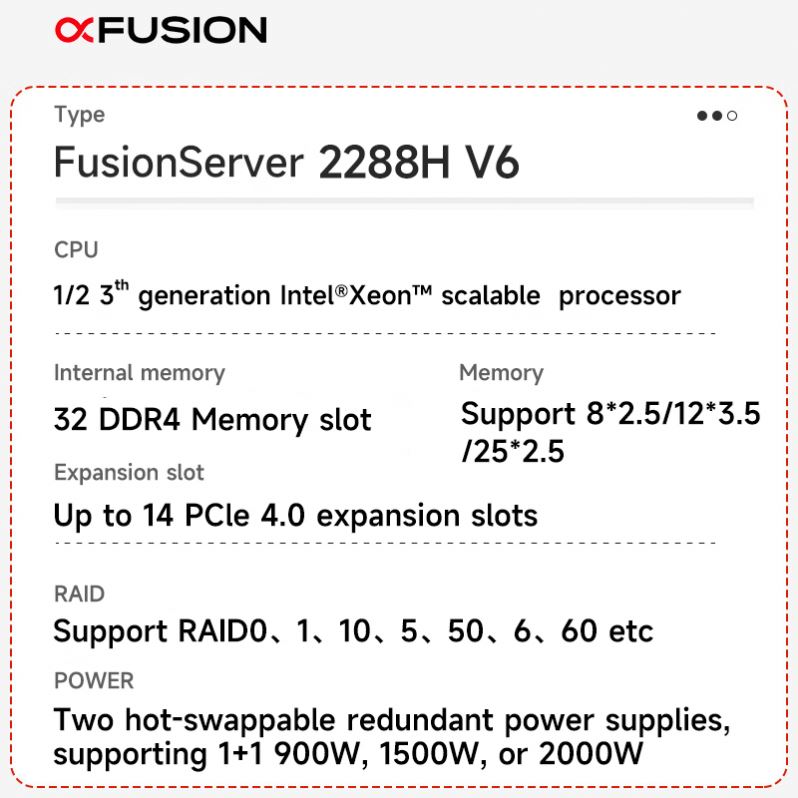

📊 Product Parameters

Server Model	FusionServer 2288H V6
Form Factor	2U rack server
Processors	One or two 3rd Gen Intel® Xeon® Scalable Ice Lake processors (8300/6300/5300/4300 series), TDP up to 270 W
Local Storage	Supports various drive configurations: 8-31 x 2.5-inch SAS/SATA/SSD; 12-20 x 3.5-inch SAS/SATA; 4/8/16/24 NVMe SSDs; Dual M.2 SSDs.

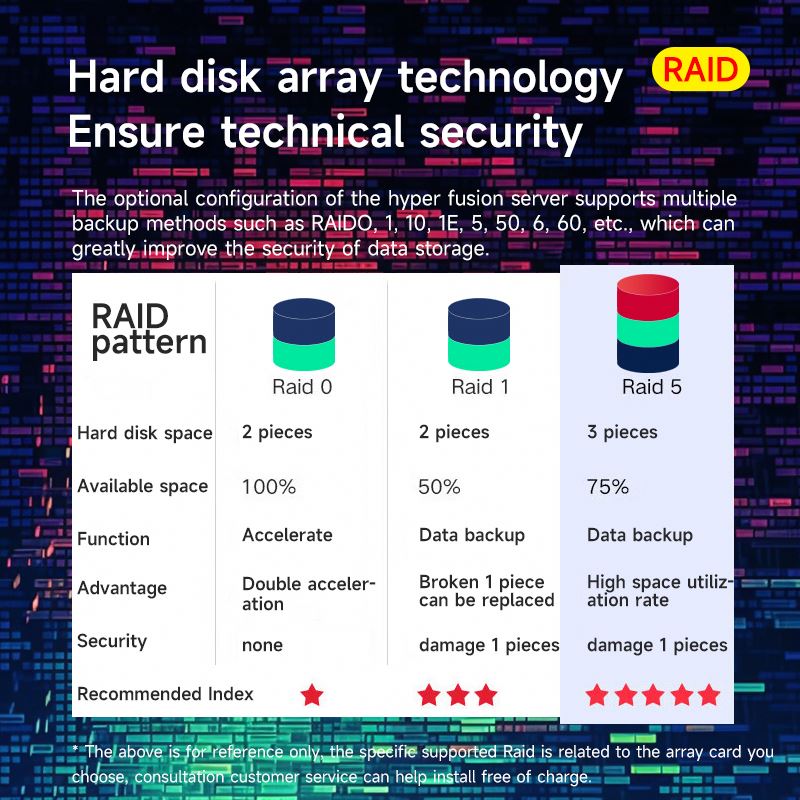

RAID Support	Supports RAID 0, 1, 10, 1E, 5, 50, 6, or 60; optional supercapacitor for cache data power failure protection.
Network	OCP 3.0 NICs; Two FlexIO card slots support two OCP 3.0 network adapters; Hot swappable function.
PCIe Expansion	Maximum of fourteen PCIe 4.0 slots, including dedicated RAID and FlexIO slots.
Chip Set	Intel C621A
Management	iBMC chip integrates dedicated GE management port; Supports Redfish, SNMP, IPMI 2.0; FusionDirector lifecycle management.
Operating Systems	Microsoft Windows Server, SUSE Linux Enterprise Server, VMware ESXi, Red Hat Enterprise Linux, CentOS, Oracle, Ubuntu, Debian.
Height X Width X Depth	86.1 mm x 447 mm x 790 mm (3.39 in. x 17.60 in. x 31.10in.)

🔍 Product Details

🏢 Infrastructure Services

As a leading integrated IT solutions provider, we combine cutting-edge in-house manufacturing, dedicated R&D facilities, and a robust global distribution network to deliver comprehensive end-to-end infrastructure services. Our team includes more than 150 certified engineers holding top-tier certifications with 15 years of expertise in designing and maintaining mission-critical IT environments.

Computing Servers

Network Storage

Network Switches

CPU, RAM, Hard Drives & Accessories

📦 Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided. We utilize high-standard protective materials to ensure that servers arrive at their destination in perfect working condition.

❓ Frequently Asked Questions

Q1: What are the primary applications for the FusionServer 2288H V6? A1: It is ideal for cloud computing, virtualization, database management, and processing big data workloads due to its flexible configuration and high performance.

Q2: Which processors are supported by this 2U rack server? A2: It supports one or two 3rd Gen Intel® Xeon® Scalable processors (Ice Lake series) with a TDP of up to 270 W.

Q3: How many storage drives can be installed in the 2288H V6? A3: It is highly scalable, supporting up to 31 x 2.5-inch drives, 20 x 3.5-inch drives, or up to 34 full-NVMe SSDs, along with dual M.2 SSDs for boot storage.

Q4: Does the server include remote management tools? A4: Yes, it features the iBMC chip for fault diagnosis and automated O&M, supporting standard interfaces like Redfish, SNMP, and IPMI 2.0.

Q5: What power supply options are available for redundancy? A5: It supports two hot-swappable PSUs in 1+1 redundancy mode, with options ranging from 900W to 3000W in Platinum and Titanium efficiency levels.

Q6: What is your standard warranty and technical support? A6: We provide a comprehensive supply chain and professional after-sales support. All hardware undergoes strict testing before delivery to ensure mission-critical reliability.
